4 axis digital readout(DRO)

  • 4 axis 7 inch LCD digital readout dro with metal case - copy
  • 4 axis 7 inch LCD digital readout dro with metal case - copy
  • 4 axis 7 inch LCD digital readout dro with metal case - copy
  • 4 axis 7 inch LCD digital readout dro with metal case - copy
4 axis 7 inch LCD digital readout dro with metal case - copy4 axis 7 inch LCD digital readout dro with metal case - copy4 axis 7 inch LCD digital readout dro with metal case - copy4 axis 7 inch LCD digital readout dro with metal case - copy

4 axis 7 inch LCD digital readout dro with metal case - copy

  • display: 7 inch LCD
  • Axis No. : 4
  • Keys: mechanical keys
  • Product description: glass linear scale digital readout dro manafacturer, sales@prdro.com
  • INQUIRY

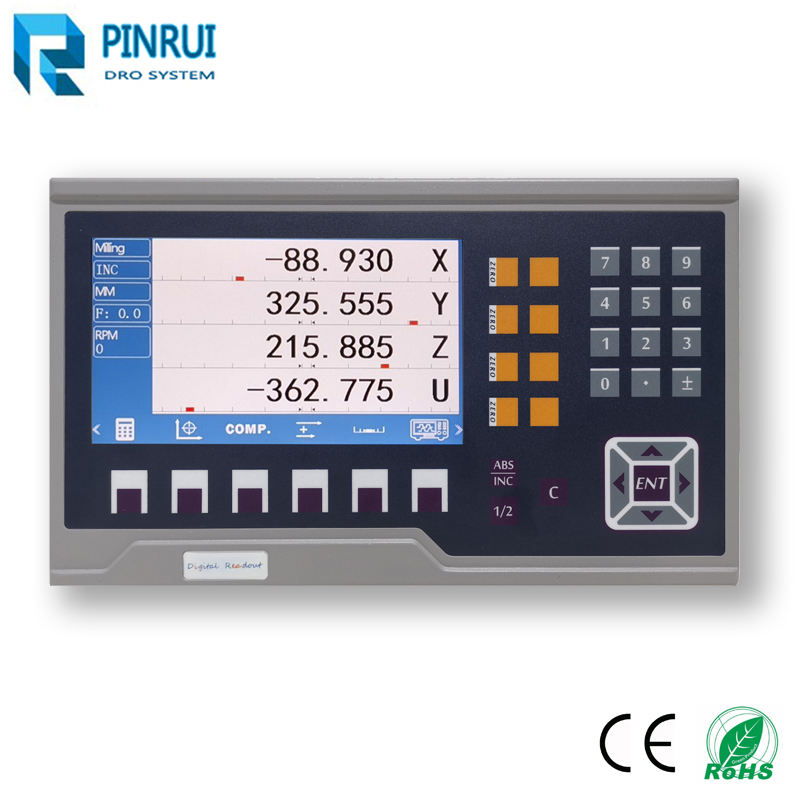

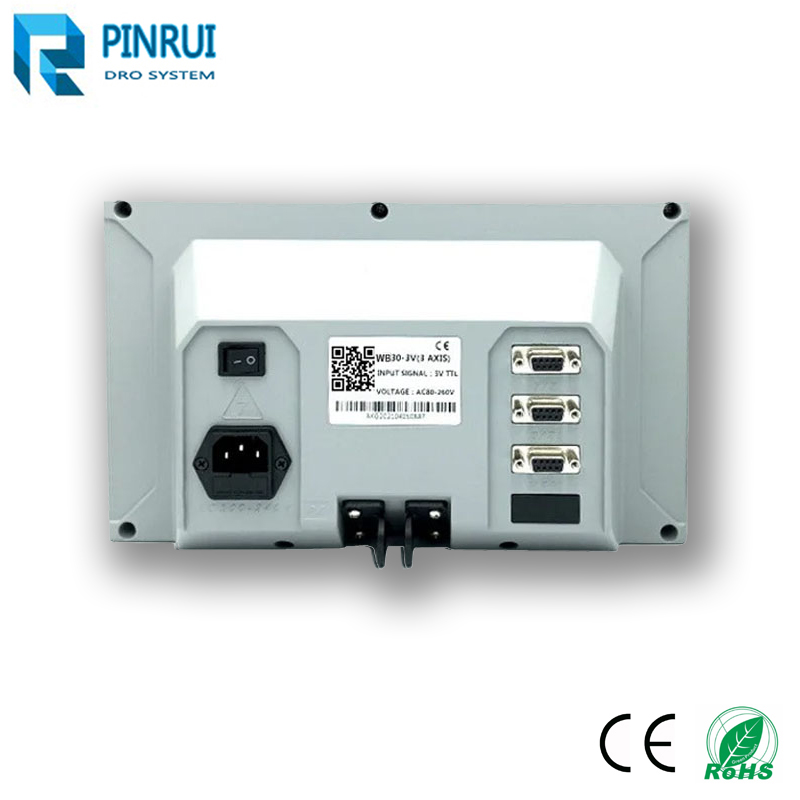

7-inch LCD digital readout(DRO)(WB-30-4v)

Using 7-inch real color LCD screen, mechanical keys, large font display, after power failure to remember the current position wide voltage input range, input voltage AC 90V-240V, all can work normally. Optional RS232 interface, convenient to communicate with computer or PLC, feedback data. LCD digital readout(DRO) can be installed on a variety of machine tools or equipment, such as lathes, milling machines, grinding machines, boring machines, spark machines, fine hole discharge machines.

with a grating scale for the machine tool to display measurement positioning.

Features:

Zero Cleaning

reset

mm / inch mode

200 sets of coordinates

memory off;

Center of1 / 2

linear error compensation

sleep mode

pure 200 sets of Sdm datum;

ABS / INC mode

calculator

circle drilling

oblique line drilling

inclined plane processing

circular arc processing

lathe (matching)

rectangular light output

digital filtering

vibration filtration

radius / diameter

with signal test function

Specifications:


1. Voltage: AC 80V--260V ; 50-60HZ

2. Power: 15W

3. Displaying: 7'' true color LCD screen

4. Working Temperature: -10 ℃ --60℃

5. Storage Temperature: -30℃--70℃

6. Relative Humidity: <90%(25)>

7. Axis Number: 1 axis,2 axis,3 axis,4 axis,5 axis

8. Input Signal: 5V TTL/5V RS422

9. Input signal Frequency: <50MHZ

10. Resolution (Linear Encoder): 0.1 um, 0.2 um,0.5 um,1 um,2 um,

2.5 um,5 um,10 um,20 um,25 um,50 um,100 um

11. Highest Resolution(Rotary Encoder): <1000000ppr

12. Weight: 1.5KGS

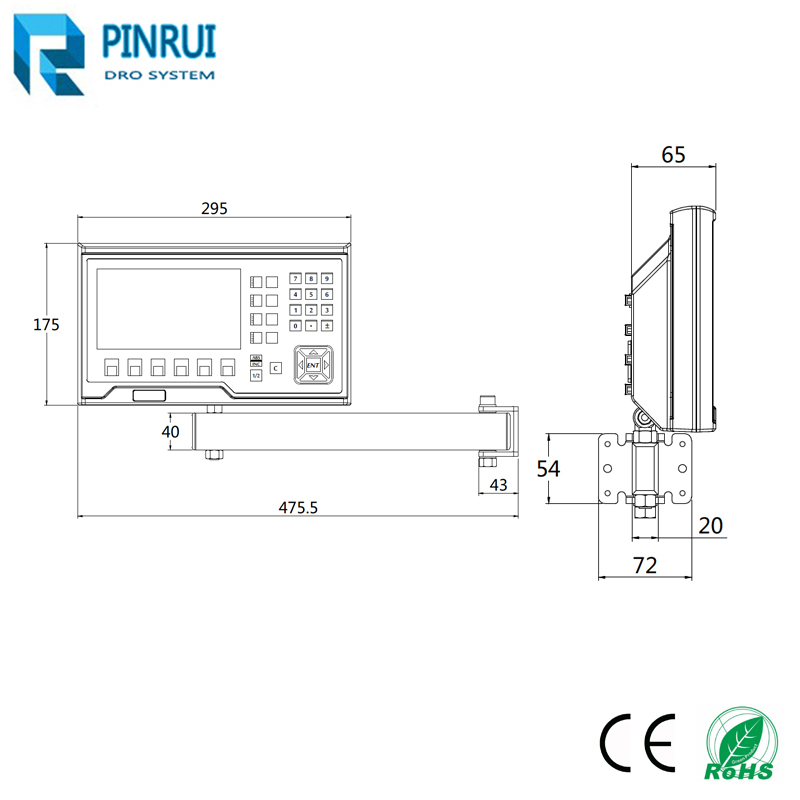

13. Dimension: 295*175*65mm

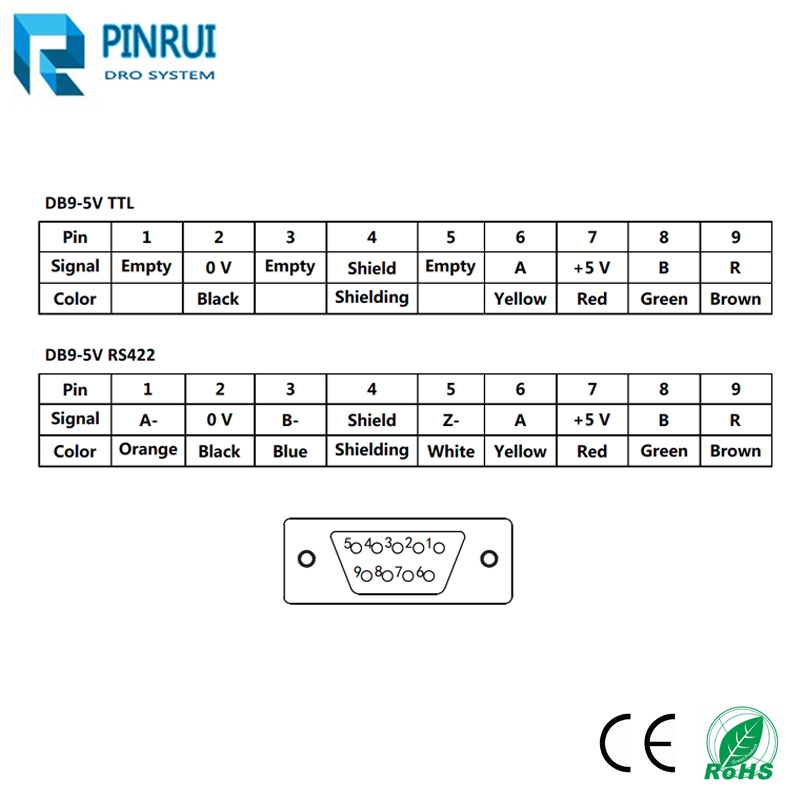

14. DB9 Pin diagram


Signal Test Function

This function is for checking the signal of linear scale.Once

operator connect the linear scale to X or Y port and set the

corresponding parameter,then the oscillogram,duty ratio,

phase difference could be tested.
