An optical linear position detection sensor (linear scale for short)

is a measurement feedback device that uses the optical principle of the grating to work. The linear scale is often used in closed-loop servo systems of CNC machines for linear position detection measurement. Its measurement output is a digital pulse signal, with a large detection range, high detection accuracy and fast response time.

Linear scale applications.

1、All kinds of measuring machines and instruments of linear position detection measurement: spring testing machine, three-axis machine, projector, microscope

2、Digital readout system for all kinds of machine tools: lathe, milling machine, grinder, boring machine, EDM, drilling machine, etc.

3、All kinds of CNC machine tools: CNC milling machine, machining center, CNC grinding machine, etc.

4、with PLC is used for linear position detection measurement of all kinds of automatic equipment.

Linear scales application on machines 1

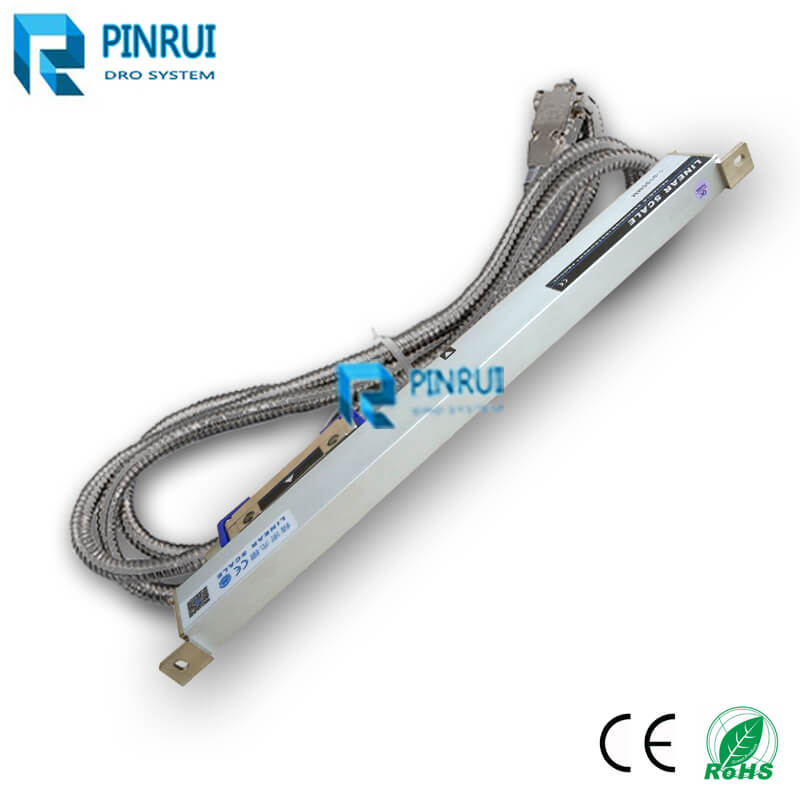

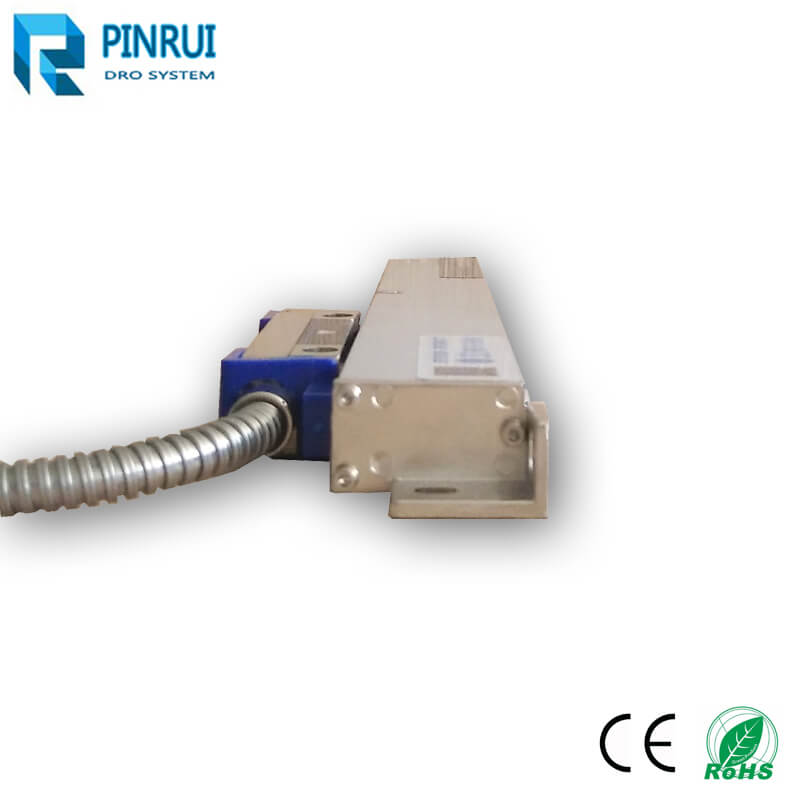

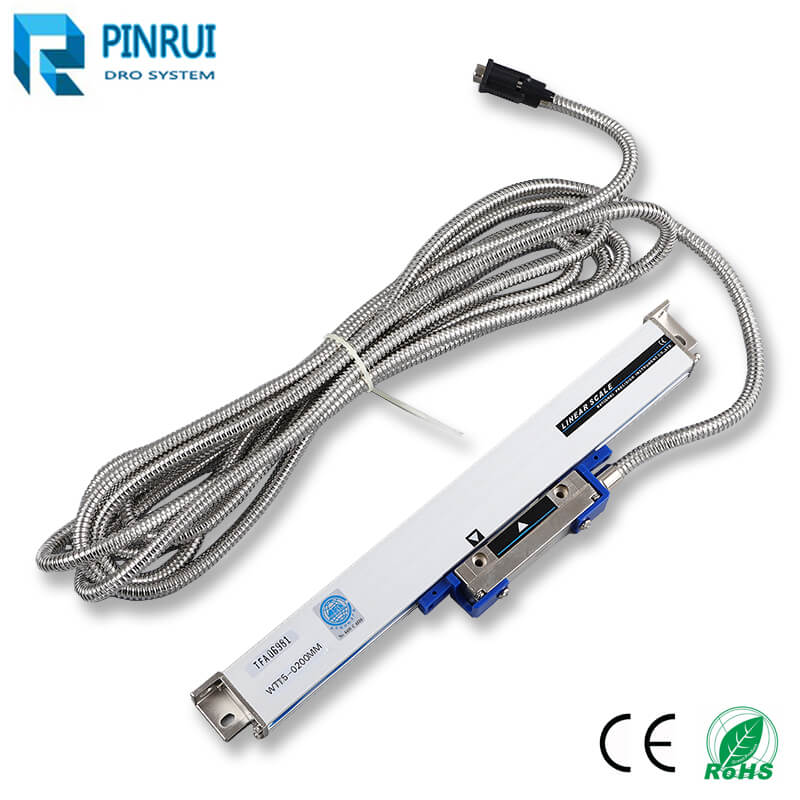

This model usually used on profile projector, electron microscope, small lathe.
