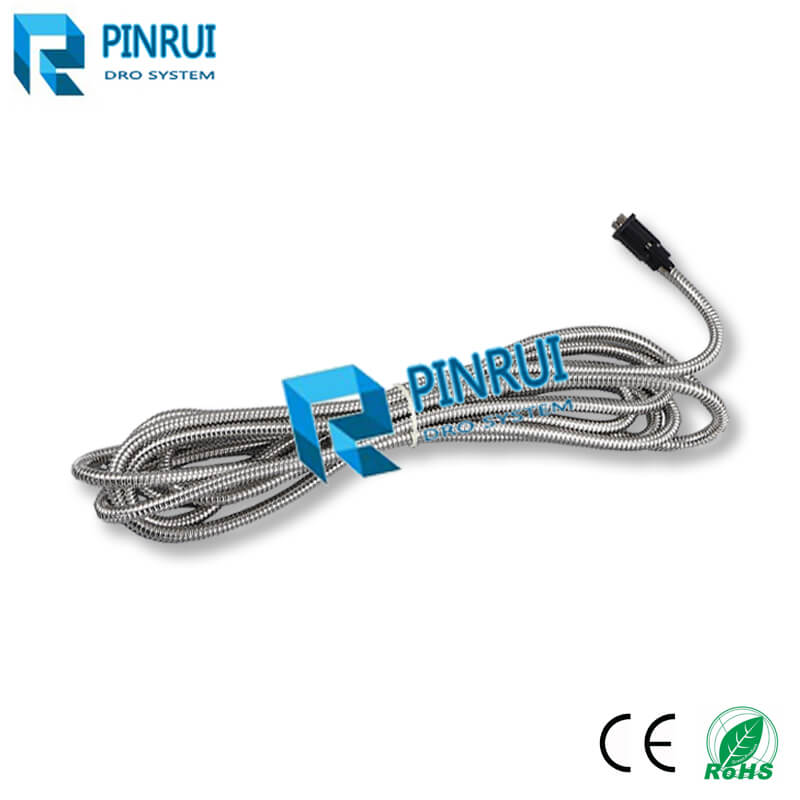

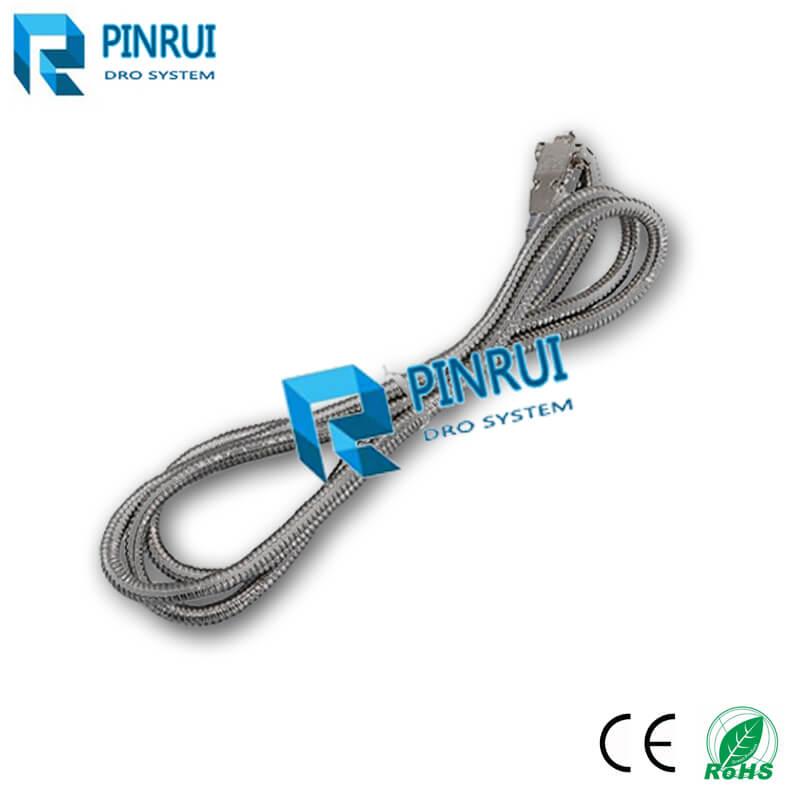

linear scale encoder dro system signal calbe WTB seires

  • Resolution:1um\5um
  • output siginal: TTL\RS422
  • work speed:30-60m\m
  • Length:2-10m
  • Product description: PINRUI high quality linear scale optical linear scale magnatic linear scale with dro system from China. sales@prdro.com
  • INQUIRY

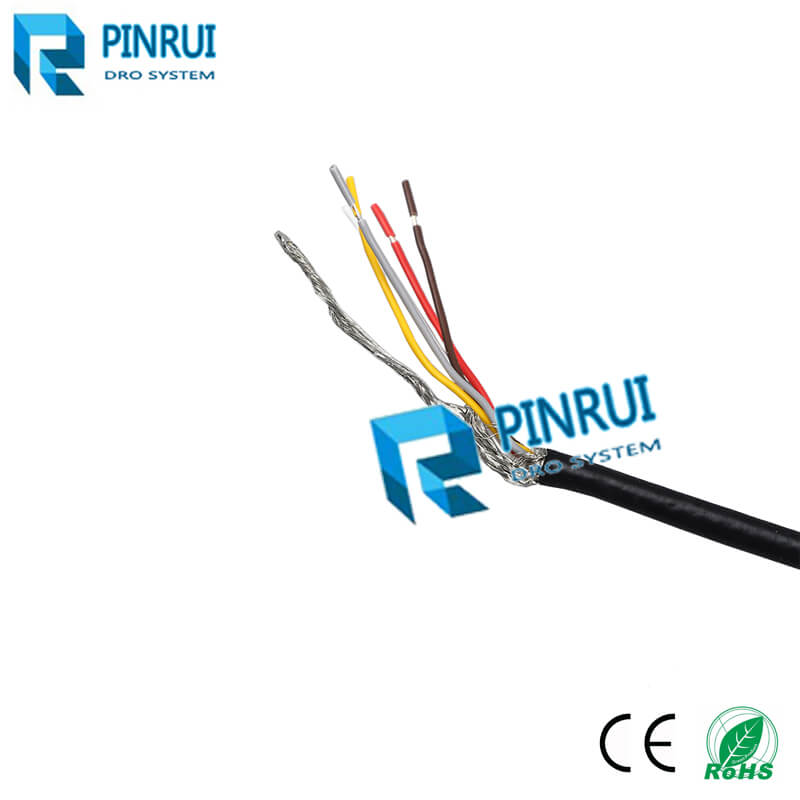

specification of linear scales signal cable :

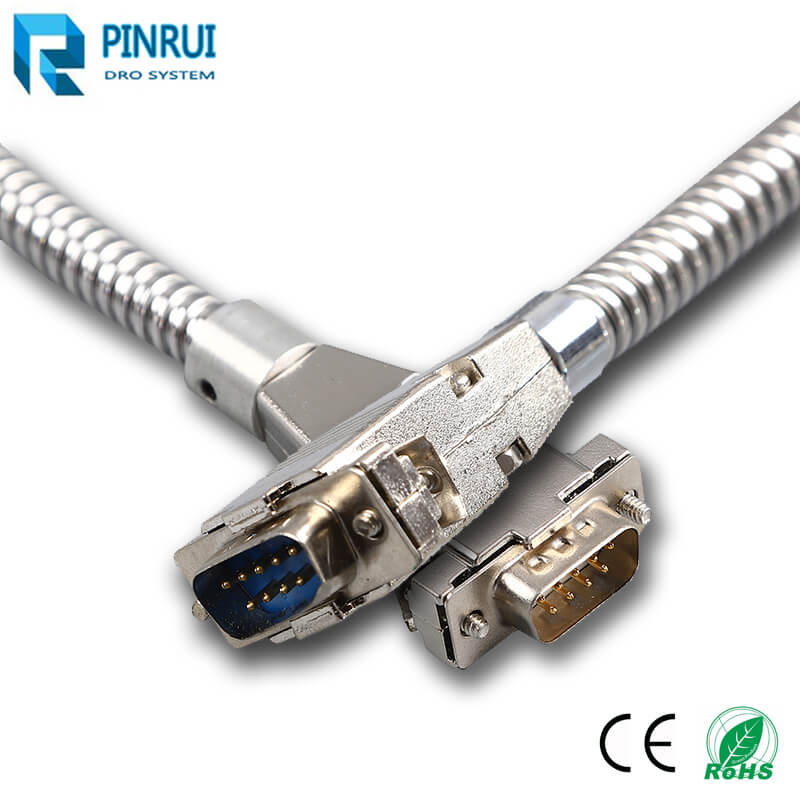

9PD

PIN         signal      color              I/O            current

1           +5V          red              input            35mA

2            0V            black           input            35mA

3             A             brown         output             4mA

4             B             yellow         output             4mA

5            RI             orange       output             4mA

9            FG            weaving net
